KH-UCANFD-LITE-X2U

Compact, high-performance dual-channel USB CAN / CAN FD adapter

Available

Two channels through one DB9 connector

Series Model

Channels	Model / P/N	USB	CAN Connector	Price incl. tax
2	KH-UCANFD-LITE-X2U	USB-A	Shared dual-channel DB9	799 RMB

Contact SalesDownloads

Hardware

• Dual-channel CAN / CAN FD: two independent channels through one DB9
• Full dual-channel load: data phase up to 12 Mbit/s
• USB 2.0 High-Speed: USB-A, 480 Mbit/s
• User button: switches the built-in 120 Ω termination
• Independent multicolor LEDs: clear status for each channel
• Compact and protected: 82 × 42 × 21 mm, 1500 V isolation, ESD ±15 / ±8 kV

Software

• Cross-platform: Windows, Linux and macOS
• Standard APIs: SocketCAN and python-can
• Multiple ecosystems: PCAN, Vector, Kvaser and ZLG toolchains
• Additional tools: BusMaster, TSMaster and ECU-BUS
• Field upgrades: online firmware updates
• Application marketplace: install protocol applications as needed

OverviewSpecificationsInterfacesDownloadsGetting Started

USB-A connects to the host; a DB9 terminal adapter or one-to-two DB9 Y cable separates CAN1 and CAN2.

KH-UCANFD-LITE-X2U connects two CAN / CAN FD networks to a computer or industrial PC through USB-A. Both channels share one DB9 connector and can be separated with a terminal adapter or one-to-two DB9 Y cable.

The adapter provides 1500 V electrical isolation, up to 12 Mbit/s in the CAN FD data phase, 64-byte CAN FD payloads and backward compatibility with CAN 2.0A/B. Both channels can operate at full bus load simultaneously.

With CANmeleon device manager, the same hardware can install protocol applications for different driver and software ecosystems. Standard SocketCAN, python-can, C/C++, C# and Python workflows are also supported.

Product Highlights

1Two channels, one DB9One compact connector carries CAN1 and CAN2.

212 Mbit/s CAN FDBoth channels support full-rate operation.

3Built-in terminationSwitch with the user button and confirm with RES LEDs.

41500 V isolationSeparates the host from the CAN network.

5Compact enclosure82 × 42 × 21 mm with integrated USB-A cable.

6CANmeleon ecosystemOne hardware platform for multiple CAN toolchains.

ISO and Non-ISO CAN FD

ISO CAN FD and the earlier Non-ISO CAN FD format are not fully compatible. All nodes on a bus must use the same mode. KH-UCANFD-LITE-X2U supports both modes.

• Two CAN / CAN FD channels through one DB9 connector
• USB 2.0 High-Speed host interface, up to 480 Mbit/s
• USB-A with 0.8 m UL-certified high-speed cable
• CAN 2.0A/B and ISO / Non-ISO CAN FD
• Arbitration rate: 25 kbit/s to 1 Mbit/s
• Data-phase rate: 25 kbit/s to 12 Mbit/s
• Both channels can operate at maximum bus load simultaneously
• CAN FD payload up to 64 bytes
• 11-bit standard and 29-bit extended identifiers
• Hardware timestamp resolution approximately 1 μs
• Bus-load measurement, error-frame detection and state monitoring
• 1500 V electrical isolation
• Two built-in 120 Ω termination resistors

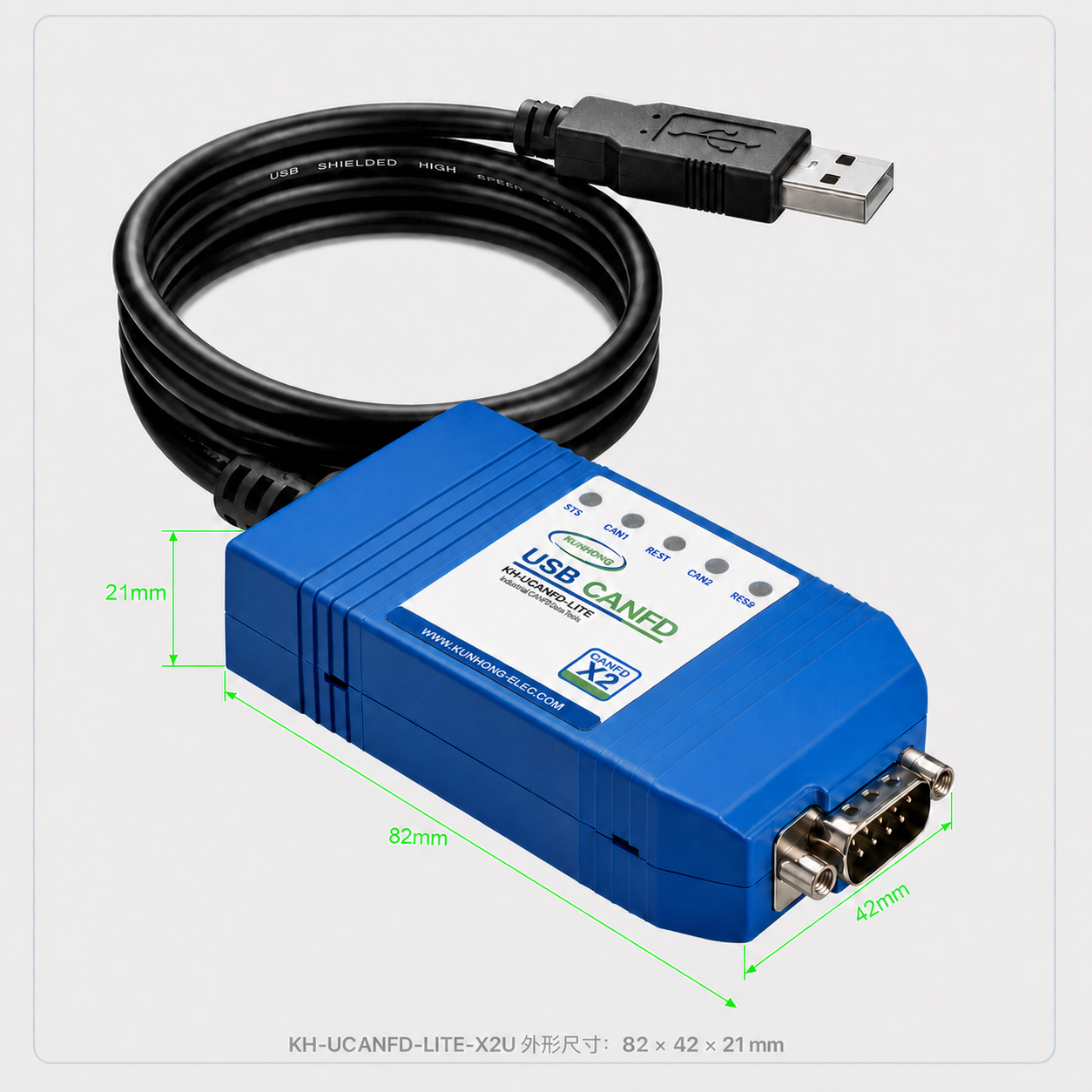

• Dimensions: 82 × 42 × 21 mm
• Operating temperature: −40 to +85 °C
• IEC 61000-4-2 ESD: ±15 kV air discharge, ±8 kV contact discharge
• Windows, Linux, macOS, SocketCAN and python-can

Ensure the adapter, target nodes and host software use the same CAN FD mode, arbitration rate, data rate and sample points.

DB9 Pinout

CAN1 uses pins 2 / 3 / 7 and CAN2 uses pins 1 / 6 / 8.

Pin	Signal	Description
1	CAN2_L	Channel 2 Low
2	CAN1_L	Channel 1 Low
3	GND	Channel 1 ground
6	GND	Channel 2 ground
7	CAN1_H	Channel 1 High
8	CAN2_H	Channel 2 High
4 / 5 / 9	NC	Not connected

User Button

• Short press: cycles termination states 00 → 01 → 10 → 11 → 00.
• Press for about 3 seconds: switches firmware / protocol application. Keep USB power stable during switching.

The state is displayed as RES2 RES1. A lit yellow RES indicator means the corresponding 120 Ω resistor is enabled.

State	CAN1 / RES1	CAN2 / RES2
00	Off	Off
01	On	Off
10	Off	On
11	On	On

See Second-Generation LED Indications for the complete LED-state reference.

• CANmeleon device manager for Windows
• KH-UCANFD Linux SDK
• CANmeleon Ecosystem
• PCAN Integration
• Vector Integration
• ZLG Integration
• Kvaser Integration

1. Connect the integrated USB-A cable and wait for the operating system to identify the device.
2. Connect CAN1 and CAN2 through the DB9 terminal adapter or Y cable. Verify CAN_H, CAN_L and GND.
3. Install CANmeleon device manager on Windows or the KH-UCANFD Linux SDK on Linux.
4. Select the required protocol application and wait for the device to reconnect.
5. Configure CAN / CAN FD mode, arbitration rate, data rate and sample points to match the target network.
6. Enable a 120 Ω termination resistor only when the adapter is located at the corresponding end of the bus.
7. Validate one channel with a known frame before enabling the second channel.

Troubleshooting

• Device not detected: reconnect to another USB port and check the device manager or kernel log.
• No frames: verify CAN_H / CAN_L, ground, bit rate, CAN FD mode and termination.
• Error frames or Bus-Off: stop transmission and check wiring, duplicate termination and timing parameters.
• Application not available immediately after switching: wait for USB re-enumeration before opening the target software.
