KH-UCANFD-B2B-X16-EVK - 16-Channel USB CANFD Evaluation Kit
Chengdu Kunhong Electronic Technology Co., Ltd.
Product Overview
The KH-UCANFD-B2B-X16-EVK is a 16-channel companion evaluation kit built with four KH-UCANFD-B2B-X4 interface cards, providing a complete development environment for quick evaluation and integration of USB CANFD interface cards into various application systems. The evaluation board offers standard interfaces and expansion features, suitable for rapid prototyping in robotics, joint motors, and other applications.
Product Status: Available

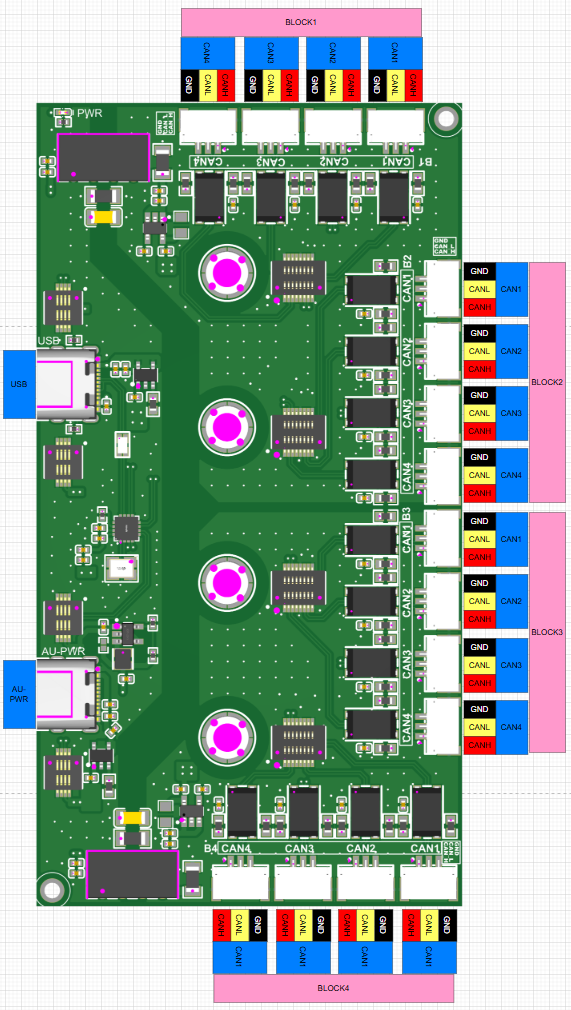

todo:evaluation kit complete image
Product Features
- Designed for use with four KH-UCANFD-B2B-X4 interface cards and the KH-UCANFD-B2B-X16-EVB evaluation board
- USB-C interface for easy host connection
- Standard interface for 16 CANFD channels
- Each CAN channel includes a tri-color status LED for quick identification of channel state, TX/RX events, and bus faults. See 2nd Generation LED Indications
Firmware Highlights
- Firmware upgrade through driver
- Hardware timestamp
Driver Highlights
- Full platform support (Windows, Linux, ARM, NVIDIA, AMD, Intel, domestic platforms, etc.)
- Built-in bus monitoring tool kcan_monitor, firmware upgrade tool kcan_update_tool
Typical Product Applications
- Rapid prototype verification
Kit Contents
Standard Components
- KH-UCANFD-B2B-X4 Interface Card × 4
- KH-UCANFD-B2B-X16-EVB Evaluation Board × 1
- USB-C Data Cable × 1
- GH1.25 Connection Cable (for CAN interface) × 16
Optional Components
- DB9 to GH1.25 Adapter Cable
Product Specifications
Basic Parameters
| Parameter | Specification |
|---|---|
| Channels | 16 |
| Interface Type | USB 2.0 (480Mbps High Speed) |
| Power Supply | USB Power |
| Termination Resistor | 120Ω (Provided by Board) |
| CAN Interface | GH1.25 4P × 16 |
| USB Interface | USB-C |
| Evaluation Board Dimensions | todo:mm |
Application Scenarios
- Rapid prototype verification
Technical Support and Services
Contact Us
- Custom development for 8/12 (or other quantity) channel boards available upon request, please contact us
